ScoreCard - WAC 2024

#### Generative Music Programs as QR Codes
---
They are among us.

They speak in code.

What do they say?

What do they want?

---

---

# Broken Links

---

# Contingent Access

Note:
QR codes are usually used as real-world links, physical anchor tags. Like like links, they do not *contain* the content; they merely point to it, and so they can break.
Thus, access is contingent on the continued *availability* of the desired data and the host allowing you *access* to the data. Without these, the link is useless.
</section>

https://open.spotify.com/track/3pv7Q5v2dpdefwdWIvE7yH

</section>

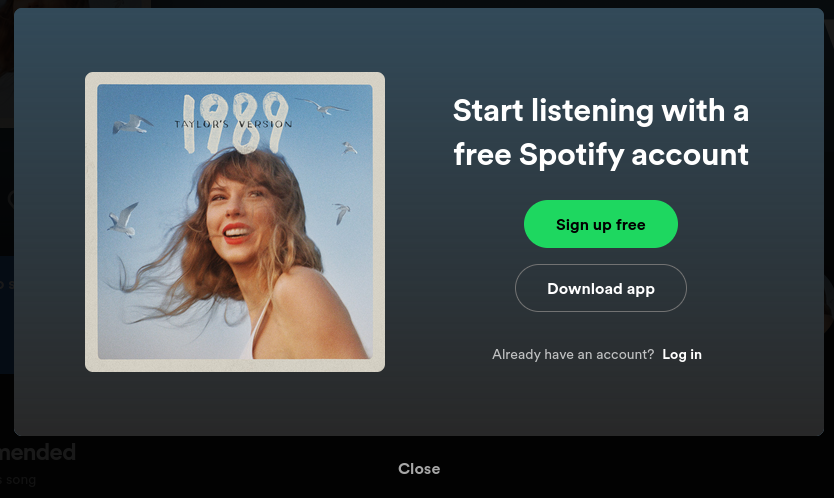

![Account Required](images/account-required.png)

</section>

---

# Can we put the content in the code?

---

# Related Work

</section>

## Barcoder
#### Electronicos Fantasticos!

</section>

## Rewtro

![Rewtro](https://raw.githubusercontent.com/kesiev/rewtro/master/markdown/photo-papercraft.png)

</section>

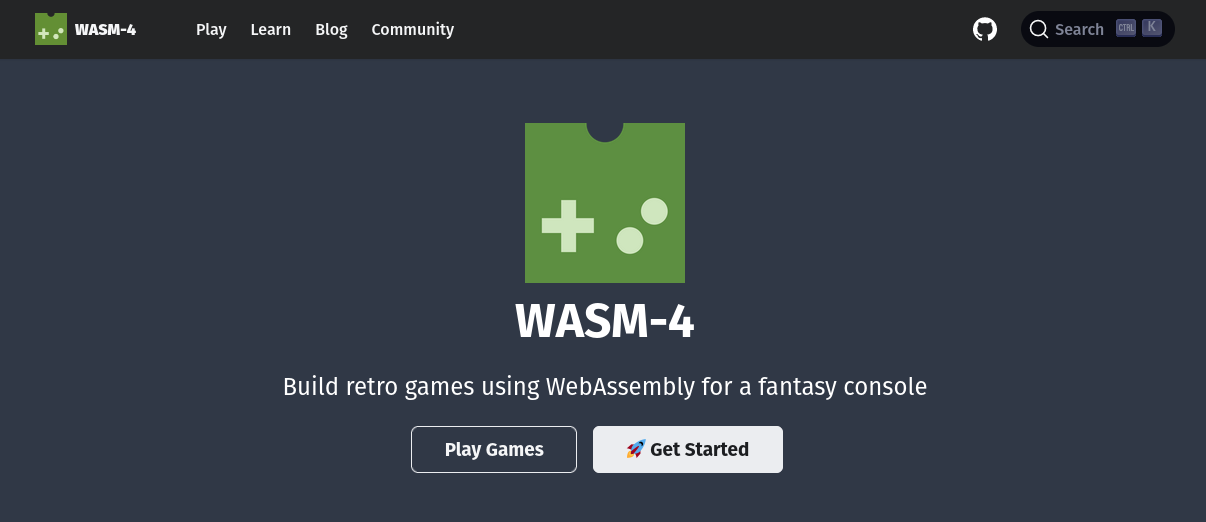

## WASM-4

![WASM-4](images/wasm-4.png)

</section>

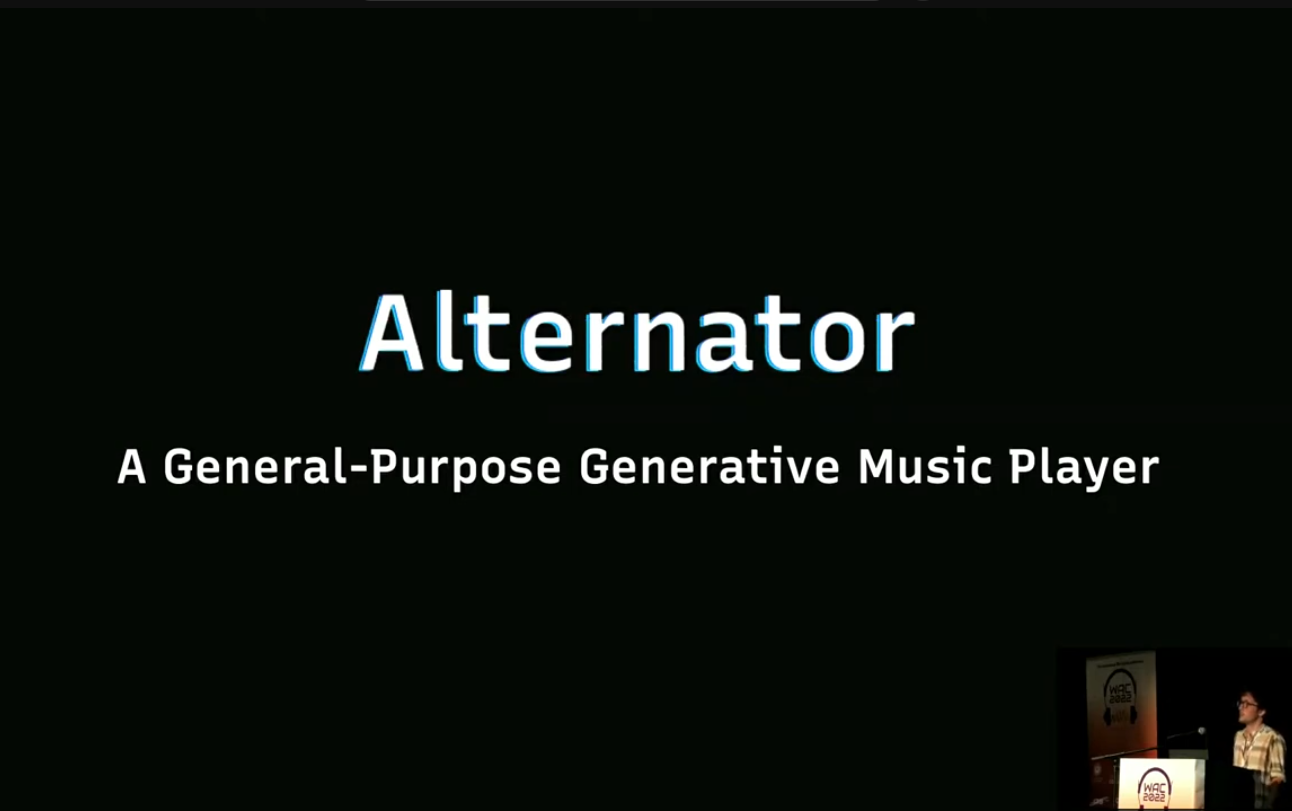

## Alternator

![Alternator](images/alternator-talk0.png)

</section>

## Alternator

![Alternator](images/alternator-talk1.png)

</section>

---

# Design

## Goals:
1. Contain music in a self-contained way
  - in the card itself
  - in a generic format
  - with minimal dependencies
2. Be scannable with stock camera apps
  - and look "scannable"

</section>

## Non-goals:
1. Contain arbitrarily large amounts of data
  - QR codes have a size limit (and cameras have limited resolution)
  - Use Alternator :-)
2. Build interactivity into card format
  - Consider JS + data URIs?

`data:text/html,<script>window.onclick=()=>{c=new AudioContext();o=new OscillatorNode(c,{frequency:440});o.connect(c.destination);o.start();window.onclick=0}</script>`
</section>

---

# Implementation

## Core pieces:
- WebAssembly
- AudioWorklet
- QR codes

</section>

## The program on the card can:
- Generate a sample (p for process)
- Optionally, take a seed (s for setup)
- Optionally, provide a description (d for description)
  - In this case, must also export m for memory

via WebAssembly exports. No imports allowed!

Note: Also, nothing outside the wasm. Even metadata is included in the wasm binary itself.

</section>

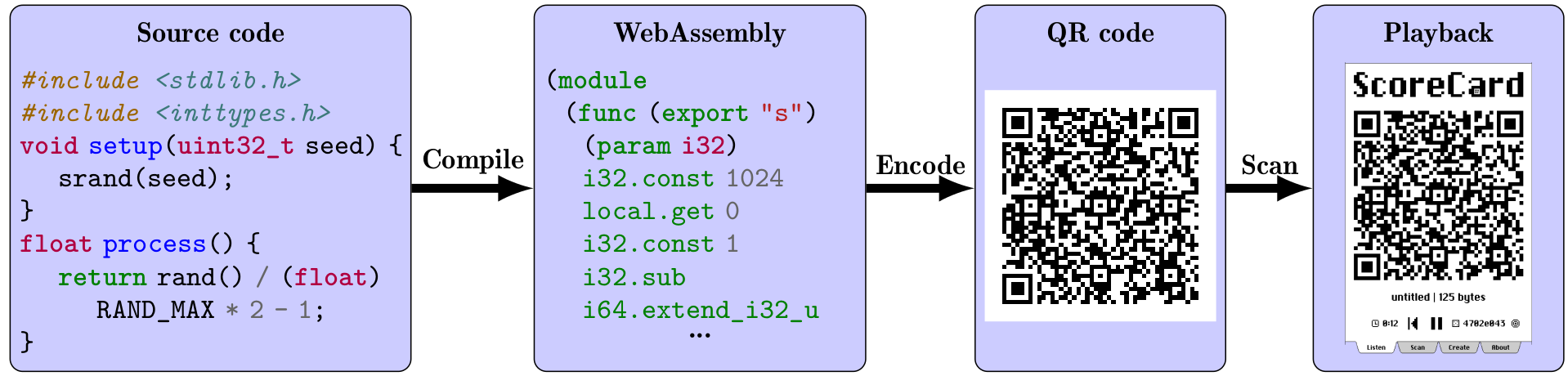

## From program to playback

![ScoreCard flow](images/flow.png)

</section>

---

## Reconciling design goals

# Problem
### Generated QR codes must
1. contain the program itself, and
2. decode to a URL to "just work" with stock camera apps

</section>

# Solution
Store the program, in a URL, in a QR code

</section>

# New Problem

Encoding overhead :-(

</section>

<section>
QR version 40, error correction L: 2953 bytes

Base64, 6 bits in one character (8 bits):
Loss of 739 bytes, down to 2214.

## Can we do better?

</section>

QR code modes:
- Numeric (0-9)
- Alphanumeric (0-9, A-Z, space, $, %, +, -, ., /, :)
- Byte
- Kanji/kana

Ideal: decodes to valid URL, encodes compactly in QR code
</section>

# Solution

Numeric mode: 3 digits in 10 bits.

log2(10) / (10/3) = ~0.9966

Only loses 10 bytes!
</section>

# New New Problem

iOS allergic to long URLs :-(

</section>

# Solution

Alphanumeric mode:<br>2 characters (45 options) in 10 bits

log2(45) / (10/2) = ~0.9985

But we can only use 43 of the characters in URLs.

log2(43) / (10/2) = ~0.9866

</section>

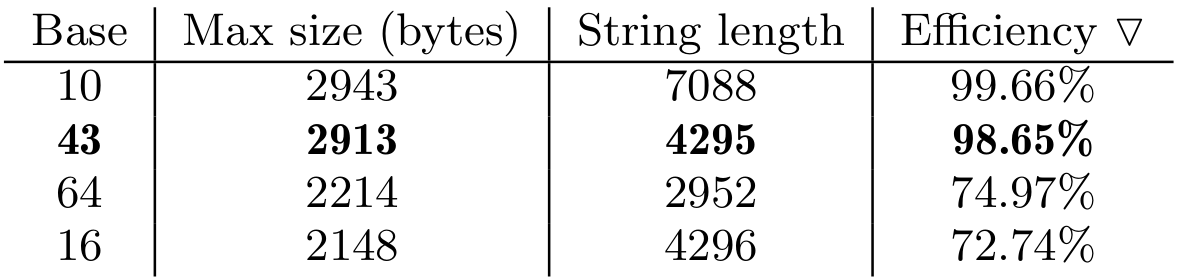

![Encoding Table](images/encoding-table.png)

After URL prefix & base43 encoding,<br>2893 bytes remain for the program.<br>Sacrificed 2% of our space for usability.

Note: for reference, that's a smaller percentage than the difference between a kilobyte (1000) and kibibyte (1024).
</section>

---

# Example

```text
(module
  (func (export "p") (result f32)
    f32.const 0))
```
</section>

Assembled as 37-byte binary:

```sh
$ xxd minimal.wasm
00000000: 0061 736d 0100 0000 0105 0160 0001 7d03  .asm.......`..}.
00000010: 0201 0007 0501 0170 0000 0a09 0107 0043  .......p.......C
00000020: 0000 0000 0b                             .....
```
</section>

Base-43:
```text
0LU+22:+M37ZMT5Q9VNHKG2IHPEYQS$DPRF8-N-CW7:5N3PBPNBI81
```

with URL prefix:

https://ijc8.me/s?c=0LU+22:+M37ZMT5Q9VNHKG2IHPEYQS$DPRF8-N-CW7:5N3PBPNBI81
</section>

---

# Composing Cards

## How much music can we make in under 3kb?

Note: For context, that's about 16 milliseconds of audio. The score card generates as much data as the whole card contains in that time.
</section>

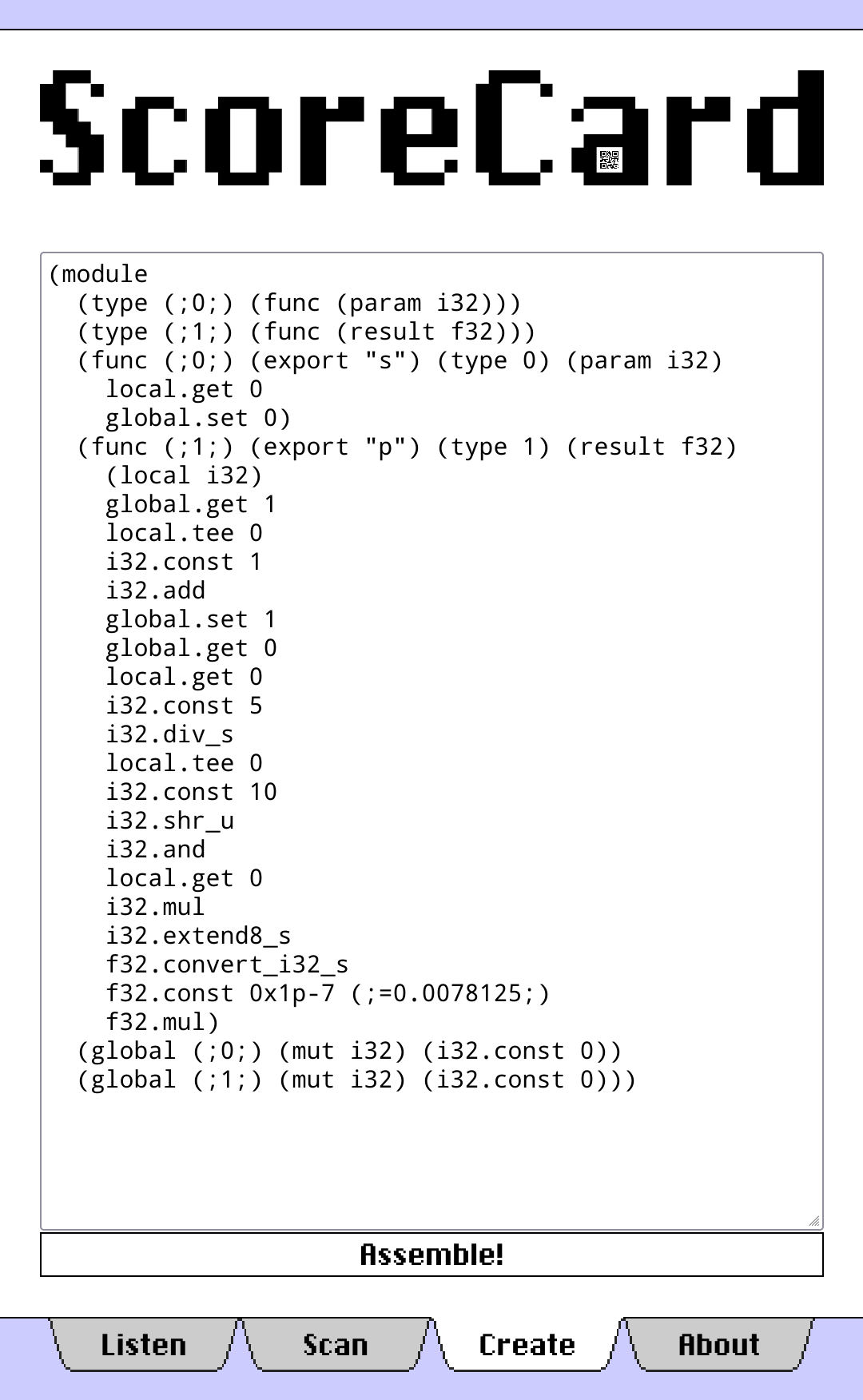

## Option 1: "Create" tab

</section>

## Option 2: anything else (recommended)

</section>

---

# Language Choice

- Runtime must fit in the score card itself!
- So, use a language with a minimal runtime.
- Preference for low-level, compiled languages.
  - which can compile to wasm
- How about C?

(unintentional anagram: "C as Record")

Note: Experiments with other languages. Faust may be promising.

---

## Composing Cards in C

```c
#include <stdlib.h>

const char d[] = "noise example";

void s(unsigned int seed) {
    srand(seed);
}

float p() {
    return rand() / (float)RAND_MAX * 2 - 1;
}
```

```sh
emcc -o noise.wasm -Oz noise.c --no-entry -sSUPPORT_ERRNO=0 \
     -sSUPPORT_LONGJMP=0 -sEXPORTED_FUNCTIONS=_d,_s,_p
```

</section>

```c
const char d[] = "bytebeat";
int sample = 0;
float p() {
    int t = sample++ / 5;
    // Bytebeat expression:
    signed char x = t * (42 & t >> 10);
    return (float)x / 128;
}
```

```sh
emcc -o bb.wasm -Oz bb.c --no-entry -sSUPPORT_ERRNO=0 \
     -sSUPPORT_LONGJMP=0 -sEXPORTED_FUNCTIONS=_d,_p
```

</section>

---

# deck.h

## a little library<br>
### for composing cards

---

```c
#include "deck.h"

card_title("FM thing");

float t, dur, start, end, phase;
float mod_depth, mod_phase, mod_ratio;
float dur_options[] = {0.25, 0.5, 1.0, 2.0, 4.0};

void setup(unsigned int seed) {
    srand(seed);
    dur = choice(dur_options);
    start = uniform(0, 1000);
    end = uniform(0, 1000);
    mod_ratio = uniform(1, 100);
    mod_depth = uniform(0, 1);
}

float process() {
    if (t > dur) return 0;
    float freq = ramp(t, dur, start, end);
    float mod_freq = freq / mod_ratio;
    freq *= 1 + mod_depth * sqr(&mod_phase, mod_freq);
    float out = sqr(&phase, freq) * env(t, dur);
    t += dt;
    return out;
}
```

```sh
$ ./build.sh fm-ramp.c
Before stripping: 663
After stripping: 497
```
</section>

```c
#include "deck.h"

card_title("arpeggios");
setup_rand;

const int chords[][5] = {{0, 2, 4, 6, 7}, {0, 2, 3, 5, 7}, {0, 1, 3, 6, 7}, {1, 3, 4, 6, 8}};
const int scale[] = {0, 2, 3, 5, 7, 9, 10, 12, 14};

typedef struct {
    uint8_t length;
    const uint8_t *order;
} pattern_t;

const pattern_t patterns[] = {
    {3, (uint8_t []){0, 1, 2}},
    {3, (uint8_t []){2, 1, 0}},
    {4, (uint8_t []){0, 1, 2, 3}},
    {4, (uint8_t []){4, 3, 2, 1}},
    {4, (uint8_t []){0, 1, 2, 4}},
    {4, (uint8_t []){0, 2, 1, 2}},
    {6, (uint8_t []){0, 1, 2, 3, 2, 1}},
    {8, (uint8_t []){0, 1, 2, 3, 4, 3, 2, 1}},
};

typedef struct {
    int pitch;
    float dur;
} event_t;

event_t arp() {
    const float dur = 60.0 / 110;
    static int c, i, j, octave;
    static pattern_t pattern;
    gen_begin;
    for (;;) {
        octave = rand() % 3;
        pattern = choice(patterns);
        for (c = 0; c < SIZEOF(chords); c++) {
            for (i = 0; i < 4; i++) {
                for (j = 0; j < pattern.length; j++) {
                    yield((event_t){scale[chords[c][pattern.order[j]]] + 48 + octave*12, dur / pattern.length});
                }
            }
        }
    }
    gen_end((event_t){});
}

float process() {
    static event_t event;
    static float t = 0, freq, phase;
    gen_begin;
    for (;;) {
        event = arp();
        if (event.pitch == 0) {
            sleep(t, event.dur);
            continue;
        }
        freq = m2f(event.pitch);
        for (; t < event.dur; t += dt) {
            yield(saw(&phase, freq) * ad(t, 0.03, event.dur - 0.03));
        }
        t -= event.dur;
    }
    gen_end(0);
}
```

</section>

---

## More examples

<section>
<iframe src="https://ijc8.me/s?c=0R*AY6H.:DT5$*/O3/3P.JQ$1HF*CX2+Z3T3:Z0PXQ9STVR+YXT*+$B2VXUJH473ZYZ9LPS2B:FAX-CBU4.SA8W25M*0F5BAZ-OGM4CD0HKH2UW9L:O32KD8T99:$EK4LU756B*6T/4OC$1++/T5:0H-S2$6.2L3MM:BP*A*HAKG$Q$XQ4ABI6+8D+PHDYQZ*9*/U1NESV:FR7OB7D-FQ3NN9UORJZ+E3739LFZ0*WIAPPZPXUNKV:++.UCK9$2I69H9RPAPP8UX$HWAP76V-CP8EW2HYZKHMK2311/FZOKRJQAAM07XGO$312KQ8X$SVCHXUV1FZK2G.PWMJS217+1DPA7LJSQX*CQLGWJ$0KOXJ:I5ZU7-4D4C*21F9IFZ9E8.Q+S9/M6.X0GOBEKSZR592YL:N+J*CZNQPZFI3-E/566LG3L44C-/7ZG:FL$DODA3T*Y5OBU0UZZEQFZIWB90A.L2ON8GSZMJO$.MN4/ES+KD3N*0O*KQ3*77NX$O:ZMEPVH-V0AB7KENWQEZXEK0HCN0I4A-F-RBRARZ+V6O4I04V0EG$ZW$OG*JAHSC$T7HBDTFVDCM-QQBL:N4BNTEPGSCP1P$:S/TD3L2*:L8151PUL2//QZ/8FTNWVB5DLHZT-6CZBYQ/GCS6/LYHPAU*WHO71:2CUE7D*MD45IE6CWIXTJ2W4UNUR2*JC4N.GU-:6+WFEL82-WX$MX.Y0I5L4LWJY*FCT:YX7:NKPXUO.UIKCNE-M+F:IR:E+65$EIC:*G3MJ35V6B5-LN8PH0SH68U0/Z3QS+YBQXE28RJGYXUM$SZUO7Q.LMDJBOJQ+JOZC*XBEQ3VLEFHVTUISXXJ1R5670ZJV:I*81L-V4UTU*JF/FJA.LLRSUU3R4KRQZXM.C:F5-:RBP8/FGPP5U./K+QRIWXST$EOYZ:HKNU+IKA7WVKDXP1TY46GBWVD*3PN74Y6EPGG4Y78W4L8EX2K9Q4UT5P2E6ZJY/TT1U4EC2WY+YGU318GAN7MDW+W$*XEA378R4CALMOV.0SPRM.M*M0RL/H3I/6Q-8KH8OAA.-V.$.+-XLZMW3Z95XGP5ZBHQ8*--Z2END:4.EMB.H630$WM1T-XI-9LZ+KL38MDSIA/5:QAFXP9-/KC0J1Z:D9BDL8N4GKQJAP50LAJ36.M4S1WKJO.EN4BTUE7UGUBR2MG9IDADH*56-XGR752-30O*J2H27OEB*TRHNOU89TY$KF/F33V5.HT39T++QLWT.I+8PVAOJR49E6$OA1HA1E3:2JA:HLPX9HNN9+FGT*MD3.6UFQ5ECQFKZ/FA4/KI+2RMSMTNTWS+O$9G.BEGN6.Q4BNWDDWDWR*31.946I8-0I+OWUA35SMJW2XY.9EV2DIM9D1YKECU1IZ3X-VT:LW9FXU9-XNS44SMK4/EJ2ZL6K+AGL3JG23TO3:VDK.Q3OO3SKYY5QSFTQ8FA.HYL87/RTSNYYKCWA6END*6P2KO0BDV2PPN3MGOYUT*BFE7LMT707*2ZCRTRG73YX03GG$R8Z/AY3HIL0DYI4T*DSKJW:2*2R4QP0VQ+BP2S.P-9T3/+*-.Z8VF2AN:4P4OH6XLLR7/6J0NG54DFD8EN88VMIX$HQFW.:TUSD64GE0FSWWF-VM8:8$:032OOWG9.EBYWFZ5D3K8M*JJEE*6X6$G04+P6S.IM146HD-S:+Y8:WOI:C4XCUS8O8WQTQLUZ8N:20N*8AW*HTEZ1UUG7KJU+.JVNA4NHY2*ZG/7RGX9Y:EW3UGR5GQ26BMB+.NK*5GM9UHW84V1G-2JV-.$W2$DO3RXOL:R04MN:W2KBQTIG+APSOFOK9X4+F/:AZFL7G.4NW6O6-/YW1*DO/QB:LGGVZCMGAAW-Q+/6GUC*WP5DQHPYGYBW3BJVDCFTJ67VLYDGV67SWE7OUJ3O*Q9-B" width="320" height="500" style="border: 1px solid black"></iframe>
</section>

---

# Forbidden Techniques

</section>

```c
// Tidalish patterns
#include "deck.h"

// Types
typedef struct {
    double start;
    double end;
} span_t;

typedef struct {
    span_t span;
    int value;
} event_t;

typedef void pattern_func(void *self, span_t span);

typedef struct {
    void *state;
    pattern_func *func;
} pattern_t;

void query(pattern_t pattern, span_t span) {
    pattern.func(pattern.state, span);
}

// Create object pool for events
#define MAX_EVENTS 1024

event_t events[MAX_EVENTS];
int events_len = 0;

void sort_events() {
    // heap sort (stdlib's qsort takes up too much space)
    int start = events_len / 2;
    int end = events_len;
    while (end > 1) {
        if (start > 0) {
            start--;
        } else {
            end--;
            event_t tmp = events[0];
            events[0] = events[end];
            events[end] = tmp;
        }

int root = start;
        int child;
        while ((child = root * 2 + 1) < end) {
            if (child + 1 < end && events[child].span.start < events[child + 1].span.start) {
                child++;
            }
            if (events[root].span.start < events[child].span.start) {
                event_t tmp = events[root];
                events[root] = events[child];
                events[child] = tmp;
                root = child;
            } else {
                break;
            }
        }
    }
}

// atom - simplest pattern (one event that occupies an entire cycle)
void atom(void *self, span_t span) {
    int start = truncf(span.start);
    int end = truncf(span.end);
    for (int i = start; i < end; i++) {
        events[events_len++] = (event_t){.span = {.start = i, .end = i + 1}, .value = (size_t)self};
    }
}

// cat (AKA slowcat) - alternate between patterns, one per cycle
typedef struct {
    pattern_t *patterns;
    int len;
} patterns_t;

void cat(void *_self, span_t span) {
    patterns_t *self = _self;
    int start = truncf(span.start);
    int end = truncf(span.end);
    for (int t = start; t < end; t++) {
        int index = t % self->len;
        int cycle = t / self->len;
        int start_event = events_len;
        query(
            self->patterns[index],
            (span_t){
                .start = t == start ? (span.start - start + cycle) : cycle,
                .end = t == end - 1 ? (span.end - start + cycle) : (cycle + 1)
            }
        );
        for (int i = start_event; i < events_len; i++) {
            events[i].span.start += (t - cycle);
            events[i].span.end += (t - cycle);
        }
    }
}

// stack - play patterns simultaneously, in parallel
void stack(void *_self, span_t span) {
    patterns_t *self = _self;
    for (int i = 0; i < self->len; i++) {
        query(self->patterns[i], span);
    }
}

// fast - warp time within pattern
typedef struct {
    pattern_t *pattern;
    double rate;
} fast_t;

void fast(void *_self, span_t span) {
    fast_t *self = _self;
    double rate = self->rate;
    int start_event = events_len;
    query(*(self->pattern), (span_t){span.start * rate, span.end * rate});
    for (int i = start_event; i < events_len; i++) {
        events[i].span.start /= rate;
        events[i].span.end /= rate;
    }
}

// degrade - sometimes mute pattern
void degrade(void *_self, span_t span) {
    pattern_t *pattern = _self;
    int start_event = events_len;
    query(*pattern, span);
    for (int i = start_event; i < events_len; i++) {
        // TODO: use a pure function of time instead of `rand()`
        if (rand() % 2) {
            // Remove event by moving the event at the end into its slot.
            events[i] = events[--events_len];
        }
    }
}

double cps = 1;

event_t ongoing_events[MAX_EVENTS];
int ongoing_events_len = 0;
double t;

#define AD(t, attack, decay) ((t) < (attack) ? ((t) / (attack)) : (1 - ((t) - (attack)) / (decay)))
#define SAW(phase) ((phase) * 2 - 1)

float synthesize_event(event_t event, double t) {
    double freq = m2f(event.value);
    t -= event.span.start / cps;
    double dur = (event.span.end - event.span.start) / cps;
    double phase = freq * t;
    phase = phase - trunc(phase);
    return AD(t, dur / 4, dur * 3 / 4) * SAW(phase);
}

float mix_events() {
    float out = 0;
    for (int j = 0; j < ongoing_events_len; j++) {
        while (t >= ongoing_events[j].span.end / cps) {
            // Event is finished; remove it by moving the event at the end into its slot.
            ongoing_events[j] = ongoing_events[--ongoing_events_len];
            if (j >= ongoing_events_len) {
                // No more events.
                return out;
            }
        }
        out += synthesize_event(ongoing_events[j], t);
    }
    return out / 2;
}

// Better living through macros.
#define COMBINE(fn, ...) {.func = fn, .state = &(patterns_t){ .len = SIZEOF(((pattern_t []){__VA_ARGS__})), .patterns = (pattern_t []){__VA_ARGS__}}}
#define STACK(...) COMBINE(stack, __VA_ARGS__)
#define CAT(...) COMBINE(cat, __VA_ARGS__)
#define FAST(r, p) {.func = fast, .state = &(fast_t){ .rate = (r), .pattern = &(pattern_t)p}}
#define DEGRADE(p) {.func = degrade, .state = &(pattern_t)p}
#define NOTE(p) {.func = atom, .state = (void *)(p)}
#define FASTCAT(...) FAST(SIZEOF(((pattern_t []){__VA_ARGS__})), CAT(__VA_ARGS__))

// Set up pattern.
// (Let's pretend this is Lisp!)
pattern_t pattern = STACK(
    NOTE(48),
    DEGRADE(
        FASTCAT(
            NOTE(60),
            NOTE(67),
            NOTE(63),
            NOTE(67))));

setup_rand;

float process() {
    static int cycle = 0, i;
    gen_begin;
    for (;;) {
        // Query our pattern to get the events for the current cycle.
        query(pattern, (span_t){cycle, cycle + 1});
        sort_events();
        for (int i = 0; i < events_len; i++) {
            debug("%d-%d: %f %f %d\n", cycle, i, events[i].span.start, events[i].span.end, events[i].value);
        }
        for (i = 0; i < events_len; i++) {
            // Skip events whose onset is not in this cycle.
            if (events[i].span.start < cycle || events[i].span.start >= (cycle + 1)) continue;
            // Generate more samples until event start.
            for (; t < events[i].span.start / cps; t += dt) {
                yield(mix_events());
            }
            // Insert new event at the end.
            ongoing_events[ongoing_events_len++] = events[i];
        }
        // Done processing events: generate more samples until the end of this cycle.
        for (; t < (cycle + 1) / cps; t += dt) {
            yield(mix_events());
        }
        // Reset events and advance cycle.
        events_len = 0;
        cycle++;
    }
    gen_end(0);
}
```

</section>

```c
// Decode audio and play audio compressed with linear predictive coding
// See https://ccrma.stanford.edu/~hskim08/lpc/

#include "deck.h"

card_title("voice");

#define LPC_SAMPLE_RATE (8820)
#define NW (264)  // window size (30ms)
#define ORDER (5)  // order of LPC filter (number of coefficients per frame)
#define COUNT (134)  // number of frames

const float Gscale = 0.00068916486550117879;
const float Ascale = 5.363421;
const int Fscale = 2048;

// To further save space, we store this data as 16-bit ints rather than 32-bit floats.
// Amplitudes (TODO: store as unsigned short for greater resolution)
const short G[COUNT] = {1,7,18,3,2,14,60,138,343,496,620,1078,7691,25810,20165,7662,3059,2737,4003,2187,1127,947,679,531,502,708,628,830,2253,3630,419,63,321,167,816,323,1430,4349,5663,5826,1157,989,893,388,110,28,10,261,1731,2108,1453,2934,9984,11780,7177,3418,3484,2285,1749,1793,1185,1241,990,576,1035,3196,2542,2816,996,570,719,696,2240,4558,4768,1769,667,505,578,842,1279,2738,7197,20484,10776,4837,2375,1169,1853,7509,32767,19732,13679,5588,898,188,60,33,16,345,2074,1138,785,600,454,152,256,1252,2395,2990,910,351,368,535,1231,1110,956,957,119,45,13,7,104,93,142,62,66,33,20,17,6,6,5,6};
// Filter coefficients
const short A[ORDER][COUNT] = {
    {4151,10246,13037,7441,5940,14079,16411,16732,16974,17663,16570,15744,14981,13753,13717,15261,15646,11032,5030,5445,6676,5883,4135,3586,2132,-298,-1950,-1841,-2431,-1974,50,-1433,5155,7644,14202,14612,16402,16794,16861,15635,18795,18454,17426,14291,15192,14944,14251,12636,12181,12625,12738,16734,18099,18571,19043,20819,20236,20350,20161,18874,20224,19542,18444,16421,16146,14825,14432,13684,15233,12381,8794,4376,-1122,-4101,857,4705,6530,9293,13132,16602,18922,18720,15785,13464,15209,17216,18128,18246,18021,16339,14226,13994,12249,11858,14053,13959,11789,11092,10450,14077,13054,12762,11067,10195,10321,10804,16712,17212,16279,16260,18996,18397,17787,18056,17683,17410,16972,15969,13758,10391,11019,11515,16339,15880,13694,13318,11655,10072,8286,8024,9740,9361,9391,9896},
    {-6,-5471,-10793,-859,-341,-9721,-16798,-18864,-19325,-22476,-19180,-18701,-18075,-15582,-15194,-17849,-18090,-8166,-498,-1381,-2184,-1140,1142,1504,3386,4328,3763,3087,124,137,2329,2907,-4039,-1648,-9389,-9459,-15547,-16517,-16701,-13455,-21504,-20461,-17956,-10902,-13111,-12173,-9953,-11867,-9846,-10162,-11694,-20872,-25563,-26583,-27473,-32768,-30836,-31047,-30927,-27208,-31376,-29757,-26779,-20931,-20070,-17677,-16509,-14562,-17957,-10073,-2679,3000,4883,-747,-3337,-3536,-4253,-5023,-8670,-16707,-25537,-27305,-20045,-14726,-18275,-22512,-23883,-22912,-22905,-20321,-16856,-16287,-12614,-11531,-14806,-14577,-9922,-8882,-7473,-13435,-10099,-9629,-8400,-7996,-7248,-8198,-16908,-18455,-15841,-15474,-22906,-19081,-17187,-19217,-19496,-18744,-17818,-14807,-10185,-4930,-4929,-4627,-17989,-16504,-13165,-10885,-7825,-5494,-3050,-3649,-2977,-2730,-3640,-3602},
    {268,1414,5219,456,769,665,9018,13085,12592,17937,13936,16018,15178,12724,13401,15209,15245,8477,4414,2819,1482,655,-853,-1340,-2130,301,967,-755,-3665,-2990,-744,-1261,-3348,-5676,-5292,-5531,4663,4909,4779,1782,8793,7280,5360,721,810,-800,-1770,4494,847,976,4979,14926,21106,21658,21904,28948,26223,26397,27266,22870,28835,27653,24440,18591,17587,15192,13638,11023,14535,5370,884,-533,2758,4092,1911,1720,1134,926,1264,5575,18496,24141,16177,11278,14796,18561,18540,16144,16727,16272,14007,13264,11185,10607,12279,11517,7142,5548,4136,4017,-627,-196,1399,2702,889,2656,7186,9424,6648,5494,12773,5200,3005,7357,9661,8652,8350,4327,2138,3833,1545,-1025,11932,9913,10904,5778,3531,3734,1751,2946,-1344,-1177,672,-923},
    {88,-645,-1797,-1129,-191,837,-3660,-6871,-5488,-9476,-7000,-9656,-7729,-6157,-8146,-9189,-9689,-7727,-957,-846,-587,-296,-45,301,-331,-1632,-1791,-159,956,849,830,1719,2152,4392,9830,9625,1081,1814,2292,3244,1514,2786,3114,3529,6145,7536,5389,827,3987,4362,432,-5906,-10003,-9855,-9361,-14196,-12211,-12249,-13593,-10973,-15467,-15291,-13311,-10806,-10606,-8531,-7256,-5018,-7536,-1205,-697,1681,585,3141,90,-22,-1373,111,-134,2088,-6552,-12096,-6792,-4435,-7085,-9453,-8612,-6980,-7492,-8463,-7387,-6329,-6206,-6330,-7291,-5727,-2678,-950,87,2162,5568,4525,1036,-1171,247,-1665,-952,-2674,-1422,-180,-2947,3287,4389,592,-2020,-1259,-1762,1001,-193,-6302,-3831,-1369,-6581,-5239,-9542,-4156,-3071,-4943,-3071,-1943,-720,-768,-2861,-1422},
    {245,-204,92,-290,-619,152,1069,1969,1274,2380,1687,2570,1398,875,1906,2371,2817,2272,-2371,-1014,-582,-668,-727,-1079,-263,-1012,-996,1029,1833,2002,2617,2969,-2631,-619,-3993,-3460,-634,-1066,-1323,-1313,-1651,-2134,-1994,-1645,-3121,-3691,-2011,-1274,-2562,-3056,-1564,876,1999,1760,1446,2948,2292,2287,2849,2105,3613,3713,3109,2712,2840,1862,1375,445,1547,-569,-467,-2662,-1415,1096,1447,-381,944,455,366,-1648,574,2415,577,-54,1045,2009,1737,1499,1610,1934,1424,736,805,936,1635,802,-373,-1046,-1513,-1582,-2703,-2220,-257,921,126,1022,-62,508,335,-104,115,-1758,-1947,-747,175,-91,216,-601,339,2712,2027,1450,2296,1942,4102,1970,1518,2335,1205,-594,871,850,1858,1705},
};
// Frequencies (0 indicates noise)
const char F[COUNT] = {0,0,0,0,0,0,0,30,24,25,25,24,26,28,29,32,33,31,31,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,85,0,28,53,0,30,31,33,33,31,0,0,0,0,0,0,0,26,23,0,0,0,0,20,20,20,20,21,21,21,21,21,21,20,31,21,0,0,0,0,0,0,0,0,25,22,22,23,23,26,28,31,32,31,29,26,46,22,21,21,21,0,0,0,0,0,0,0,0,0,0,0,29,28,29,28,29,31,31,29,50,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0};

float Xhat[NW][SIZEOF(G)] = {0};
#define STEP (NW / 2)
float xhat[(SIZEOF(G)-1)*STEP+NW] = {0};

void setup(unsigned int seed) {
    // `lpcDecode`
    srand(seed);
    // Random frequency offset for fun. (Doesn't affect formants, just fundamental.)
    int freq_offset = rand() % 30;
    float offset = 0;
    for (int i = 0; i < COUNT; i++) {
        float ys[ORDER] = {0};
        float source[NW] = {0};
        if (F[i]) {
            float step = (float)Fscale/(F[i] + freq_offset);
            float j;
            for (j = offset; j < NW/2; j += step) {
                source[(int)j] = sqrtf(step);
            }
            offset = j - NW/2;
        } else {
            for (int j = 0; j < NW; j++) {
                source[j] = noise();
            }
            offset = 0;
        }
        for (int j = 0; j < NW; j++) {
            float x = source[j] * sqrtf((float)G[i]/32767 * Gscale);
            float y = -x;
            for (int k = ORDER - 1; k >= 0; k--) {
                float a = (float)A[k][i]/32768*Ascale;
                y += a*ys[k];
                if (k > 0) ys[k] = ys[k-1];
            }
            ys[0] = y;
            float frac = (float)j/(NW-1);
            float w = sqrtf((frac < 0.5 ? frac : 1 - frac) * 2);
            Xhat[j][i] = w * y;
        }
    }

// `pressStack`
    for (int i = 0; i < COUNT; i++) {
        for (int j = 0; j < NW; j++) {
            xhat[j + STEP*i] += Xhat[j][i];
        }
    }
}

float process() {
    static float i = 0;
    if (i + 1 >= SIZEOF(xhat)) return 0;
    int i0 = i;
    float frac = i - i0;
    float a = xhat[i0];
    float b = xhat[i0 + 1];
    i += (float)LPC_SAMPLE_RATE / SAMPLE_RATE;
    return a + (b - a) * frac;
}
```

</section>

```c
#include <stdbool.h>
#include "deck.h"

card_title("twinkle");

typedef enum {
    NOTE_ON,
    NOTE_OFF,
} event_type_t;

typedef struct {
    event_type_t type;
    short time;
    char pitch;
    char velocity;
} event_t;

int ticks_per_beat = 256;
int microseconds_per_beat = 631577;

event_t events[] = {
    { .type = NOTE_ON, .pitch = 60, .velocity = 77, .time = 0 },
    { .type = NOTE_ON, .pitch = 52, .velocity = 63, .time = 0 },
    { .type = NOTE_ON, .pitch = 48, .velocity = 64, .time = 0 },
    { .type = NOTE_OFF, .pitch = 60, .velocity = 0, .time = 244 },
    { .type = NOTE_ON, .pitch = 60, .velocity = 83, .time = 12 },
    { .type = NOTE_OFF, .pitch = 52, .velocity = 0, .time = 231 },
    { .type = NOTE_OFF, .pitch = 48, .velocity = 0, .time = 0 },
    { .type = NOTE_OFF, .pitch = 60, .velocity = 0, .time = 13 },
    { .type = NOTE_ON, .pitch = 67, .velocity = 90, .time = 12 },
    { .type = NOTE_ON, .pitch = 60, .velocity = 77, .time = 0 },
    { .type = NOTE_ON, .pitch = 48, .velocity = 71, .time = 0 },
    { .type = NOTE_OFF, .pitch = 67, .velocity = 0, .time = 244 },
    { .type = NOTE_ON, .pitch = 67, .velocity = 87, .time = 12 },
    { .type = NOTE_OFF, .pitch = 60, .velocity = 0, .time = 231 },
    { .type = NOTE_OFF, .pitch = 48, .velocity = 0, .time = 0 },
    { .type = NOTE_OFF, .pitch = 67, .velocity = 0, .time = 13 },
    { .type = NOTE_ON, .pitch = 69, .velocity = 86, .time = 12 },
    { .type = NOTE_ON, .pitch = 60, .velocity = 73, .time = 0 },
    { .type = NOTE_ON, .pitch = 41, .velocity = 66, .time = 0 },
    { .type = NOTE_OFF, .pitch = 69, .velocity = 0, .time = 244 },
    { .type = NOTE_ON, .pitch = 69, .velocity = 83, .time = 12 },
    { .type = NOTE_OFF, .pitch = 60, .velocity = 0, .time = 231 },
    { .type = NOTE_OFF, .pitch = 41, .velocity = 0, .time = 0 },
    { .type = NOTE_OFF, .pitch = 69, .velocity = 0, .time = 13 },
    { .type = NOTE_ON, .pitch = 67, .velocity = 81, .time = 12 },
    { .type = NOTE_ON, .pitch = 60, .velocity = 75, .time = 0 },
    { .type = NOTE_ON, .pitch = 48, .velocity = 71, .time = 0 },
    { .type = NOTE_OFF, .pitch = 67, .velocity = 0, .time = 487 },
    { .type = NOTE_OFF, .pitch = 60, .velocity = 0, .time = 0 },
    { .type = NOTE_OFF, .pitch = 48, .velocity = 0, .time = 0 },
    { .type = NOTE_ON, .pitch = 65, .velocity = 80, .time = 25 },
    { .type = NOTE_ON, .pitch = 57, .velocity = 70, .time = 0 },
    { .type = NOTE_ON, .pitch = 41, .velocity = 68, .time = 0 },
    { .type = NOTE_OFF, .pitch = 65, .velocity = 0, .time = 244 },
    { .type = NOTE_ON, .pitch = 65, .velocity = 85, .time = 12 },
    { .type = NOTE_OFF, .pitch = 57, .velocity = 0, .time = 231 },
    { .type = NOTE_OFF, .pitch = 41, .velocity = 0, .time = 0 },
    { .type = NOTE_OFF, .pitch = 65, .velocity = 0, .time = 13 },
    { .type = NOTE_ON, .pitch = 64, .velocity = 82, .time = 12 },
    { .type = NOTE_ON, .pitch = 55, .velocity = 69, .time = 0 },
    { .type = NOTE_ON, .pitch = 48, .velocity = 76, .time = 0 },
    { .type = NOTE_OFF, .pitch = 64, .velocity = 0, .time = 244 },
    { .type = NOTE_ON, .pitch = 64, .velocity = 84, .time = 12 },
    { .type = NOTE_OFF, .pitch = 55, .velocity = 0, .time = 231 },
    { .type = NOTE_OFF, .pitch = 48, .velocity = 0, .time = 0 },
    { .type = NOTE_OFF, .pitch = 64, .velocity = 0, .time = 13 },
    { .type = NOTE_ON, .pitch = 62, .velocity = 81, .time = 12 },
    { .type = NOTE_ON, .pitch = 55, .velocity = 71, .time = 0 },
    { .type = NOTE_ON, .pitch = 43, .velocity = 69, .time = 0 },
    { .type = NOTE_OFF, .pitch = 62, .velocity = 0, .time = 244 },
    { .type = NOTE_ON, .pitch = 62, .velocity = 83, .time = 12 },
    { .type = NOTE_OFF, .pitch = 55, .velocity = 0, .time = 231 },
    { .type = NOTE_OFF, .pitch = 43, .velocity = 0, .time = 0 },
    { .type = NOTE_OFF, .pitch = 62, .velocity = 0, .time = 13 },
    { .type = NOTE_ON, .pitch = 60, .velocity = 81, .time = 12 },
    { .type = NOTE_ON, .pitch = 52, .velocity = 71, .time = 0 },
    { .type = NOTE_ON, .pitch = 48, .velocity = 75, .time = 0 },
    { .type = NOTE_OFF, .pitch = 60, .velocity = 0, .time = 487 },
    { .type = NOTE_OFF, .pitch = 52, .velocity = 0, .time = 0 },
    { .type = NOTE_OFF, .pitch = 48, .velocity = 0, .time = 0 },
    { .type = NOTE_ON, .pitch = 67, .velocity = 94, .time = 25 },
    { .type = NOTE_ON, .pitch = 60, .velocity = 80, .time = 0 },
    { .type = NOTE_ON, .pitch = 48, .velocity = 72, .time = 0 },
    { .type = NOTE_OFF, .pitch = 67, .velocity = 0, .time = 244 },
    { .type = NOTE_ON, .pitch = 67, .velocity = 83, .time = 12 },
    { .type = NOTE_OFF, .pitch = 60, .velocity = 0, .time = 231 },
    { .type = NOTE_OFF, .pitch = 48, .velocity = 0, .time = 0 },
    { .type = NOTE_OFF, .pitch = 67, .velocity = 0, .time = 13 },
    { .type = NOTE_ON, .pitch = 65, .velocity = 81, .time = 12 },
    { .type = NOTE_ON, .pitch = 57, .velocity = 71, .time = 0 },
    { .type = NOTE_ON, .pitch = 41, .velocity = 68, .time = 0 },
    { .type = NOTE_OFF, .pitch = 65, .velocity = 0, .time = 244 },
    { .type = NOTE_ON, .pitch = 65, .velocity = 84, .time = 12 },
    { .type = NOTE_OFF, .pitch = 57, .velocity = 0, .time = 231 },
    { .type = NOTE_OFF, .pitch = 41, .velocity = 0, .time = 0 },
    { .type = NOTE_OFF, .pitch = 65, .velocity = 0, .time = 13 },
    { .type = NOTE_ON, .pitch = 64, .velocity = 82, .time = 12 },
    { .type = NOTE_ON, .pitch = 55, .velocity = 70, .time = 0 },
    { .type = NOTE_ON, .pitch = 43, .velocity = 73, .time = 0 },
    { .type = NOTE_OFF, .pitch = 64, .velocity = 0, .time = 244 },
    { .type = NOTE_ON, .pitch = 64, .velocity = 84, .time = 12 },
    { .type = NOTE_OFF, .pitch = 55, .velocity = 0, .time = 231 },
    { .type = NOTE_OFF, .pitch = 43, .velocity = 0, .time = 0 },
    { .type = NOTE_OFF, .pitch = 64, .velocity = 0, .time = 13 },
    { .type = NOTE_ON, .pitch = 62, .velocity = 82, .time = 12 },
    { .type = NOTE_ON, .pitch = 55, .velocity = 67, .time = 0 },
    { .type = NOTE_ON, .pitch = 43, .velocity = 72, .time = 0 },
    { .type = NOTE_OFF, .pitch = 62, .velocity = 0, .time = 487 },
    { .type = NOTE_OFF, .pitch = 55, .velocity = 0, .time = 0 },
    { .type = NOTE_OFF, .pitch = 43, .velocity = 0, .time = 0 },
    { .type = NOTE_ON, .pitch = 67, .velocity = 90, .time = 25 },
    { .type = NOTE_ON, .pitch = 60, .velocity = 76, .time = 0 },
    { .type = NOTE_ON, .pitch = 48, .velocity = 73, .time = 0 },
    { .type = NOTE_OFF, .pitch = 67, .velocity = 0, .time = 244 },
    { .type = NOTE_ON, .pitch = 67, .velocity = 84, .time = 12 },
    { .type = NOTE_OFF, .pitch = 60, .velocity = 0, .time = 231 },
    { .type = NOTE_OFF, .pitch = 48, .velocity = 0, .time = 0 },
    { .type = NOTE_OFF, .pitch = 67, .velocity = 0, .time = 13 },
    { .type = NOTE_ON, .pitch = 65, .velocity = 84, .time = 12 },
    { .type = NOTE_ON, .pitch = 57, .velocity = 71, .time = 0 },
    { .type = NOTE_ON, .pitch = 41, .velocity = 68, .time = 0 },
    { .type = NOTE_OFF, .pitch = 65, .velocity = 0, .time = 244 },
    { .type = NOTE_ON, .pitch = 65, .velocity = 85, .time = 12 },
    { .type = NOTE_OFF, .pitch = 57, .velocity = 0, .time = 231 },
    { .type = NOTE_OFF, .pitch = 41, .velocity = 0, .time = 0 },
    { .type = NOTE_OFF, .pitch = 65, .velocity = 0, .time = 13 },
    { .type = NOTE_ON, .pitch = 64, .velocity = 82, .time = 12 },
    { .type = NOTE_ON, .pitch = 55, .velocity = 70, .time = 0 },
    { .type = NOTE_ON, .pitch = 43, .velocity = 73, .time = 0 },
    { .type = NOTE_OFF, .pitch = 64, .velocity = 0, .time = 244 },
    { .type = NOTE_ON, .pitch = 64, .velocity = 82, .time = 12 },
    { .type = NOTE_OFF, .pitch = 55, .velocity = 0, .time = 231 },
    { .type = NOTE_OFF, .pitch = 43, .velocity = 0, .time = 0 },
    { .type = NOTE_OFF, .pitch = 64, .velocity = 0, .time = 13 },
    { .type = NOTE_ON, .pitch = 62, .velocity = 83, .time = 12 },
    { .type = NOTE_ON, .pitch = 55, .velocity = 70, .time = 0 },
    { .type = NOTE_ON, .pitch = 43, .velocity = 69, .time = 0 },
    { .type = NOTE_OFF, .pitch = 62, .velocity = 0, .time = 487 },
    { .type = NOTE_OFF, .pitch = 55, .velocity = 0, .time = 0 },
    { .type = NOTE_OFF, .pitch = 43, .velocity = 0, .time = 0 },
    { .type = NOTE_ON, .pitch = 60, .velocity = 82, .time = 25 },
    { .type = NOTE_ON, .pitch = 52, .velocity = 69, .time = 0 },
    { .type = NOTE_ON, .pitch = 48, .velocity = 73, .time = 0 },
    { .type = NOTE_OFF, .pitch = 60, .velocity = 0, .time = 244 },
    { .type = NOTE_ON, .pitch = 60, .velocity = 83, .time = 12 },
    { .type = NOTE_OFF, .pitch = 52, .velocity = 0, .time = 231 },
    { .type = NOTE_OFF, .pitch = 48, .velocity = 0, .time = 0 },
    { .type = NOTE_OFF, .pitch = 60, .velocity = 0, .time = 13 },
    { .type = NOTE_ON, .pitch = 67, .velocity = 90, .time = 12 },
    { .type = NOTE_ON, .pitch = 60, .velocity = 80, .time = 0 },
    { .type = NOTE_ON, .pitch = 48, .velocity = 72, .time = 0 },
    { .type = NOTE_OFF, .pitch = 67, .velocity = 0, .time = 244 },
    { .type = NOTE_ON, .pitch = 67, .velocity = 83, .time = 12 },
    { .type = NOTE_OFF, .pitch = 60, .velocity = 0, .time = 231 },
    { .type = NOTE_OFF, .pitch = 48, .velocity = 0, .time = 0 },
    { .type = NOTE_OFF, .pitch = 67, .velocity = 0, .time = 13 },
    { .type = NOTE_ON, .pitch = 69, .velocity = 87, .time = 12 },
    { .type = NOTE_ON, .pitch = 60, .velocity = 69, .time = 0 },
    { .type = NOTE_ON, .pitch = 41, .velocity = 68, .time = 0 },
    { .type = NOTE_OFF, .pitch = 69, .velocity = 0, .time = 244 },
    { .type = NOTE_ON, .pitch = 69, .velocity = 81, .time = 12 },
    { .type = NOTE_OFF, .pitch = 60, .velocity = 0, .time = 231 },
    { .type = NOTE_OFF, .pitch = 41, .velocity = 0, .time = 0 },
    { .type = NOTE_OFF, .pitch = 69, .velocity = 0, .time = 13 },
    { .type = NOTE_ON, .pitch = 67, .velocity = 79, .time = 12 },
    { .type = NOTE_ON, .pitch = 60, .velocity = 72, .time = 0 },
    { .type = NOTE_ON, .pitch = 48, .velocity = 73, .time = 0 },
    { .type = NOTE_OFF, .pitch = 67, .velocity = 0, .time = 487 },
    { .type = NOTE_OFF, .pitch = 60, .velocity = 0, .time = 0 },
    { .type = NOTE_OFF, .pitch = 48, .velocity = 0, .time = 0 },
    { .type = NOTE_ON, .pitch = 65, .velocity = 81, .time = 25 },
    { .type = NOTE_ON, .pitch = 57, .velocity = 69, .time = 0 },
    { .type = NOTE_ON, .pitch = 41, .velocity = 68, .time = 0 },
    { .type = NOTE_OFF, .pitch = 65, .velocity = 0, .time = 244 },
    { .type = NOTE_ON, .pitch = 65, .velocity = 83, .time = 12 },
    { .type = NOTE_OFF, .pitch = 57, .velocity = 0, .time = 231 },
    { .type = NOTE_OFF, .pitch = 41, .velocity = 0, .time = 0 },
    { .type = NOTE_OFF, .pitch = 65, .velocity = 0, .time = 13 },
    { .type = NOTE_ON, .pitch = 64, .velocity = 81, .time = 12 },
    { .type = NOTE_ON, .pitch = 55, .velocity = 70, .time = 0 },
    { .type = NOTE_ON, .pitch = 48, .velocity = 75, .time = 0 },
    { .type = NOTE_OFF, .pitch = 64, .velocity = 0, .time = 244 },
    { .type = NOTE_ON, .pitch = 64, .velocity = 84, .time = 12 },
    { .type = NOTE_OFF, .pitch = 55, .velocity = 0, .time = 231 },
    { .type = NOTE_OFF, .pitch = 48, .velocity = 0, .time = 0 },
    { .type = NOTE_OFF, .pitch = 64, .velocity = 0, .time = 13 },
    { .type = NOTE_ON, .pitch = 62, .velocity = 82, .time = 12 },
    { .type = NOTE_ON, .pitch = 55, .velocity = 71, .time = 0 },
    { .type = NOTE_ON, .pitch = 43, .velocity = 69, .time = 0 },
    { .type = NOTE_OFF, .pitch = 62, .velocity = 0, .time = 244 },
    { .type = NOTE_ON, .pitch = 62, .velocity = 83, .time = 12 },
    { .type = NOTE_OFF, .pitch = 55, .velocity = 0, .time = 231 },
    { .type = NOTE_OFF, .pitch = 43, .velocity = 0, .time = 0 },
    { .type = NOTE_OFF, .pitch = 62, .velocity = 0, .time = 13 },
    { .type = NOTE_ON, .pitch = 60, .velocity = 80, .time = 12 },
    { .type = NOTE_ON, .pitch = 52, .velocity = 70, .time = 0 },
    { .type = NOTE_ON, .pitch = 48, .velocity = 74, .time = 0 },
    { .type = NOTE_OFF, .pitch = 60, .velocity = 0, .time = 487 },
    { .type = NOTE_OFF, .pitch = 52, .velocity = 0, .time = 0 },
    { .type = NOTE_OFF, .pitch = 48, .velocity = 0, .time = 0 },
};

typedef struct {
    float freq;
    float phase;
    float time;
    float env;
    float amp;
    bool held;
} voice_t;

voice_t voices[128] = {0};

const float attack_time = 0.1;
const float decay_time = 0.2;
const float sustain_level = 0.5;
const float release_time = 0.5;

#define SAW(phase) ((phase) * 2 - 1)

float generate_envelope(int i) {
    if (!voices[i].held && voices[i].env == 0) {
        return 0;
    }
    voices[i].time += dt;
    float t = voices[i].time;
    if (t < attack_time) {
        return t / attack_time;
    }
    t -= attack_time;
    if (t < decay_time) {
        return 1 - (t / decay_time) * (1 - sustain_level);
    }
    t -= decay_time;
    // debug("t: %f\n", t);
    if (voices[i].held) {
        // debug("sustain\n");
        return sustain_level;
    } else if (t < release_time) {
        // debug("%f\n", sustain_level * (1 - t / release_time));
        return sustain_level * (1 - t / release_time);
    } else {
        // debug("done\n");
        return 0;
    }
}

float synthesize_waveform(int i) {
    return saw(&voices[i].phase, voices[i].freq);
}

float synthesize_voices() {
    float out = 0;
    for (int i = 0; i < SIZEOF(voices); i++) {
        voices[i].env = generate_envelope(i);
        if (!voices[i].env) continue;
        out += voices[i].env * voices[i].amp * synthesize_waveform(i) / 8;
    }
    return out;
}

float velocity_to_amplitude(char velocity) {
    // Reference: https://www.cs.cmu.edu/~rbd/papers/velocity-icmc2006.pdf
    const float R = 30.0; // dynamic range in decibels
    const float r = powf(10.0, R / 20.0);
    const float b = 127.0 / (126.0 * sqrt(r)) - 1.0 / 126;
    const float m = (1.0 - b) / 127.0;
    return powf(m * velocity + b, 2.0);
}

float process() {
    static int i;
    static float next_event_time, t = 0;
    gen_begin;
    for (i = 0; i < SIZEOF(events); i++) {
        next_event_time = (float)events[i].time / ticks_per_beat * microseconds_per_beat / 1e6;
        for (; t < next_event_time; t += dt) {
            yield(synthesize_voices());
        }
        t -= next_event_time;
        debug("%d %d %d\n", i, events[i].type, events[i].pitch);
        int p = events[i].pitch;
        if (events[i].type == NOTE_ON) {
            voices[p].freq = m2f(p);
            // May be a retrigger; jump to appropriate point in ATTACK segment.
            voices[p].time = attack_time * voices[p].env;
            voices[p].amp = velocity_to_amplitude(events[i].velocity);
            voices[p].held = true;
        } else if (events[i].type == NOTE_OFF) {
            // Jump to appropriate point in DECAY or RELEASE segment, depending on envelope amplitude.
            if (voices[p].env > sustain_level) {
                voices[p].time = attack_time + decay_time * (1 - voices[p].env) / (1 - sustain_level);
                // debug("a: %f\n", voices[p].time);
            } else {
                voices[p].time = attack_time + decay_time + (1 - voices[p].env / sustain_level) * release_time;
                // debug("b: %f\n", voices[p].time);
            }
            voices[p].held = false;
        }
    }
    for (;;) {
        yield(synthesize_voices());
    }
    gen_end(0);
}
```

</section>

<section>
<iframe src="https://ijc8.me/s?c=03L-6UTZ+8Z5$UDCI2$E2YPJX1Q$17-12EZN0:J+L3+7W52ESG7PTWYL4L:7SEA1S/YPU5Q.XC-3AV:2:U/NHD6CHYP+732IOP*4ZAZVJFL:$9W4IQRGP4EF-5ABRTIDO1.7$VWWRP5BUIAWCM--D/Y$.ACNNKPJQI8K9ZN20VHFU7XO5B7XHZJZZ2F:YXSJO5NYR82605VXVRD9Z:VG26858RAH2.6/CUK:IWKYHLA:QCLUI6X0FZDG-W0+OJG/8O*XTXT72Z+6GZ08/YIJZY:C5V+A32UQV1$8FMHGJCBVKKUU79KXZV4/6XXQUQR+JML+ES0DH*4Q8721G-YV3PPA01-U79FOQ$0TBW*QN/O$UEBS-82/J*31Q8XIJ..:B4J4:S$H53/7/E4YDN0ZQ.POKG-IY4$B7U74W/PPVKGHXTHT3.BLPLFXD/KM$.7M1*7-/HL.:+6Q/IB6-DDU$RAYB+Y9O33ZMGR:YU528CVVQHS8L1/OHP$X/CUWQQL0E3HB$30MMDFF4QSE1IPUG0MW$-/SVR7JDX05YTSL0M1FHO:/VF4H:G*ATEEA*:MHFQ$DC6BL3H04.CR9QCQHQZN1T/ZS0PEEOTT7LTN2:1WZ:KT39C1O+COZD43ZN3YJTR4P::J$KBPFOUTTTIFZS6DL4821FKKO+-LLDDTORMPI2O8X9GR7HM-3JKEK89/JGB3GT$/MEP5N/747P-1/8TOQ9+3CR$ZZKHG//N+5T*RV6WKRN:H8O.85P-.5N.IBAZ5RKDRDD8/+NYSW2I*5O-Z35SO39SK*3+3DQ4U1E896BUMABXFZHMHJY02LH.9O5OFGWOEZOD0JI90RIEG0C.NNC*A*0*0H2Y1IGTJSW1Z-Q*B3P0K6W7W+XR/MG8O2K4U::FNSAK:32AOSP0MW*32$R*9/APNA-GBB867Y65-DB+9QHWYWYCW2M/Q28IHPY9AUENIW6T8XBQH:$14163A60UGKE$FQ2W9ZE04G3V49H3L110SDJJQLFS0V//Q3LX:/5W+JX:P8ME1LT07S*K-:.J183ENP4CPF8H2P$0HB+0SBMUZHX5RRKCF3M1Y69AA++IJ*PBCJKA9$Q*.+ES8/V3+*$B8+LLRMN$XK95+6SB$BL4VS+NGIM5N0KTQ6+MBZJWL++.RK$A5YF/32BLAV3U+8I:J7PWXES5LR*Y5Y7*M5MX78::KRZLNBNDNZZDCX320GHFLQNIH7T6ZJ0VQ3DJ3IR9K:X-YWHR/6CRRKLG/U5605MZL2Y+CLW2EXAB398WTO4PLG/76PDP02F05+EWSM+FQI2VL:DI:01RQMV2MY/ZVLWRH9YH:*:0CMWHH62Q3.3M-JM3J$6Z2U*BAE*E20LK2:$UWPW6KH0/:BU0$NOES2RB93E87I9E+8QN+17*C2WEWKG*AIAW$7I:CS61NIJFQ0U4PLQ3.PM7:4V:/E*V$CV4R5QEP/4P+VPRBM0QB3T+3HDDTDGTRE1KL+5.YMZC:105BGN.TZO+$KYIJ*5GAQF*R+9+XIJ8ARD/G+P/WA0R*YK9S522G6O:RCNH80.PPB.6NBDI.9XU+QL8Y3PC+UIX6QBHWE0CHJ1S.5U-OU*WY3+2.8M:0Y3/ZV+FOC0BBSLW.6LCXDBYK-9A9TP/VWA+*R/UH5JURMWDMRAT3W./AYYMRR5RJG+PBI6F*B3:7Y5VJ$+FA:PNWU8-VYZLN5E32GRPM*6UW$L45PWDSSZLQMQ11U/32OF6.84EDFP7JM0F6H38/8$IIGQ64L11K18+I+S2.*EPDVXIA39G1U9$MQJS4RMH2/P1-K*ZJ$28RU05XIDCRP/$8A9.3I4FJ0/Y8P.33*HYH1WBF4D59-W91AM6$6//7C*NUNB6HN9VZ0VI2FSD:4X/1N06TFX4A$3+NHI.FC..US:1M68*Y4TDSY*3*R9LBJ3O3T+M92UCMT25X.9OU*0-G3EASFIECF0*UI-5E$IN1RXDZXF/PX2ODMEUVWDE$WXL+DJWNC3-486T--06KKCD1EF4LEX1DRU-U:E5B9H-E++YS0B.TWW$G3:VH+IE:2JK9V51U0/NMCHTZYW+:F*3GVGTVAYNO:35PFJ-RU+1U/ONHGCX.E./06OQ*QF*NU0XYO0JDB9:9PBZU2Q0TILIB9W:4RI7X-I+/2D1QQ4N:ZH7DE3X$X3:ECWMQO:5TRH2P-456$Y5Y4ZDZ*QGOOG6Q8V93-F5WSS:JF88:CKMIK*9*51CAW9TDB9*O8:1AX6564W+RRQ5TJ3B$8KD-5*1Y*T*15WYA7JWNPOJJR-KV82EIQ0..34QO5GYUK6MZ$62.7D*707VLBW1T+8Z1.8E5/V12MZP2ZJJ2OOXDFPUZWENJG.N9:XIB:LDO7-/G4DGKL66.D*W*1-BAQK1LMEUV82PK.-7G814.WLW9QW41ZI7GGI*+3KT.GMHKH17DDFYB.NQXM9JY/QY/ZS/*NDHFLKX:3IW644M:H+D69B1Y0.VDT*+O1YI0RL0E:DNM/X5OGT*6$6UF94*Q803G.U4EL+WBS4/O.S8OSJRAJ/K.$$DT22J.SMOR7V2L7D+$XGO2L.8VUTVT.:BJ0I:$Z8Q/8HW1YZ*FJ$JJ5UATND$L3I8J31M$V2754FOJKAI2.$:P/J9PLWN3I-BARW8KN4$D3.BQH7S6JIAAW/0JVKJQ6.Z.GFBH6ITQ-910R0481BUCGHFYR$9SATAS$I/6WUEY.5NE0+64-I2UQ:V-RL59YX533MLM5OD.7T1X9VF7900CQJB$W14Q7027U43CHTTZZBY256+JJW/FOHYH4F*B05KDRVL1HUIFW-TO.8HPHPR/D+QLJ$6MHGCSGR9UWF6ABM5B+O76R3J78LVVCLQA/XJRMYIDPWB$W$$+$ZS-I$ZH6XXDZP:Z3KIBC8OXKTEC5.948+VZ9WN8FWPNH11YDI5.UVH$YEURU5-4PMNYK04$+UT0VST0$PBEKL.V:YFG1TKP*WA2.PEDCR9PME$NB0Z8D+.C4857H7*QL:5-W3V$3E.8BR$M28K+CDR/:*Z7K-+I1H2Y1:BLW:D78Y:.C+V:P60KK76F229EKE-H4EKC9ROZ:Y2NLN4.YSOZ4LXFCGP7Z5QJQWZ.YURYBDM/TNQE-26MF:6EDF$HY0$QZ.D02*N-E3CY+2W-7LYTL*AR052L1QV7SCK2M7$E7.M*JPVV6MVLCFJU9YJ9A8JYU.ARE9LGA.035H$TW6*W1Q.UX3-RN4Q$GO9WYNA6:D6V7HDHRMJKM.MY3V5GR8FVHRF9B-D0P8KTFSU9USS745K73K:0F:UGWKIQ987EAOGR8IA+IIB8BZ:T9YA5/BC$6FZ$AB09VWR95Z0MLKD5TJIZQ+L7N-BKBLH6NNPT3$B4UQHOL.Y:4RU-YMAZH:T/*P$1OQKEV8891M8ZIC.LAI*80FU$9-/5RP4Z12THM1$96ZK+/JBM-RQF7DGV/-IBC+W+MT-EGHUN22JCABFSAE" width="320" height="500" style="border: 1px solid black"></iframe>
</section>

---

# Discussion

- Code as Compression
  - Musical Processes/Computational Processes
- Pointers and Values
  - Content repositories; control and access
  - "Pass-by-reference" vs. "Pass-by-value"
  - Musical mediums
- Tangibility; the value of physical "cards"

---

# Future work

- More approachable interfaces for creation
- More methods for manipulation: "punch cards"
- Visualizuation, execution tracing
- ScoreCard as UGen?
- Visually interesting codes?

---

# Thank you!
## [github.com/ijc8/scorecard](https://github.com/ijc8/scorecard)
### [ijc8.me](https://ijc8.me) — ijc@ijc8.me

Note: TODO Here's my card
